FEATURES:

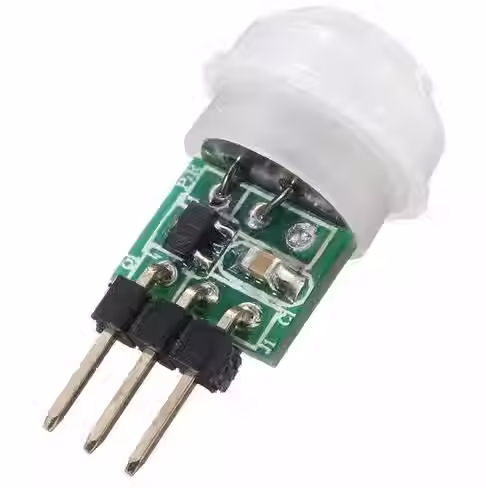

The AM312 PIR Motion Sensor is a state-of-the-art, small passive infrared (PIR) motion sensor that is specifically made to improve efficiency and security in a variety of applications, such as automated lighting systems and burglar alarms. Using the power of cutting-edge technology, this amazing sensor has the astonishing ability to easily interact with microcontrollers like the ESP8266 or ESP32, taking a 3.3 volt direct supply.


Immunity enhancement, internal use of digital signal processing, direct high-low output.
Repeatable trigger: the sensor output remains high after detection and will stay high if there is human activity in its sensing range. Once the activity stops and after the delay period, the output becomes low. The delay time is extended with each new detection, starting from the last activity time.

SPECIFICATIONS:

Total size: Approx. 12mm x 25mm
PCB Dimensions: 10mm x 8mm
Sensing range: ≤100-degree cone angle, 3-5m (depending on the lens)
Working temperature: -20 - +60 ℃
Static power consumption: <0.1mA
Working voltage: DC 2.7-12V
Delay time: 2 seconds
The blocking time: 2 seconds
Trigger: can be repeated
Module Lens: Small lens

PACKAGING LIST:

1 x PIR Motion AM312
